Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

Haizhili (Jingshan) Machine Technology Co., Ltd.

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

Brand Name : HAIZHILI

Model Number : SJY0.5-11

Certification : CE

Place of Origin : HUBEI PROVINCE

MOQ : 1 set

Price : USD 2700-3100 PER SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 SETS PER MONTH

Delivery Time : 25 days after receipt of down payment

Packaging Details : Each to be packed in a wooden case

Product Name : Elevated Work Platform

Material : High-strength manganese steel

Table size : 2150*1140mm

Self weight : 1680kg

Overall size : 2250*1300*2370mm

Rated height : 11000mm

Capacity : 500kg

Voltage : 380v/50hz

Motor power : 2.2kw

Color : Yellow + black

Lift drive / actuation : Hydraulic,Electric Motor

Warranty : 1 Year

Lift mechanism : Scissor Lift

Contact Now

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platformScissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

The equipment is mainly used to lift workers to higher places for maintenance, cleaning or installation.

Installed with emergency stop switch to product personal safety. It's an ideal equipment of safe

operation. It is characterized by great loading capacity. Steady ascending and descending, mobile

convenient, easy to work.

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

Specification of Elevated Work Platform:

Model Loading capacity Max lifting height Min lifting height Table size Elevating time Voltage Power Net weight Overal size
SJY0.5T-11 500kg 11000mm 1370mm 2150*1140mm 100S 380V/50HZ 2.2kw 1260kg 2250*1300*2370mm

If this is not the model you are looking for, please let us know the followings:

1) Load capacity

2) Lifting height

3) Platform size

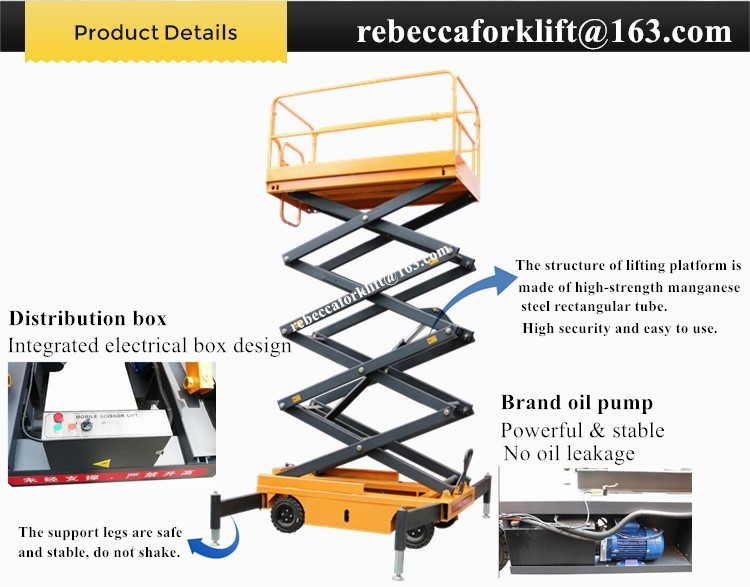

Feature of Elevated Work Platform:

1) Multi-fuction. People can control the machines on the platform to walk, reverse, rise, fall or turn.

It can propel fast or slow at different working height.

2) Strong and durable. It is composed by three parts, base, arm and platform.
Bases are made from strong steel plate.
Arm parts are scissor design with strong Manganese steel.
There is Guard railing on the platform to ensure people's safety.

3) Safety guaranteed.
The equipments are designed with over loading hydraulic security protection system and anti falling

system in case of power shortage.
It was designed with a emergence valve for dropping in case of power shortage.

Usage method of Elevated Work Platform:

1. The lifting platform has been inspected and debugged at the factory before delivery. All the technical

indexes have reached the design requirements. When using, the lifting platform only needs to be

connected with the power supply, and the hydraulic system and electrical system need not to be adjusted.

2. The platform should be carefully checked before use of hydraulic, electrical systems, no leakage

or naked leakage before use.

3. Lifting platform in use, the four legs should be firmly supported on a solid ground (with the wheel to

leave the ground shall prevail) if necessary, the use of sleepers.

4. Lifting platform empty run 1-3 times before loading operation.

5. Load center of gravity should be as far as possible in the center of the table.

6. Guard railings at both ends of the movable door should be locked after the lock operation.

Application of Elevated Work Platform:

This Aerial Working Lift is mainly used for lifting cargos and delivering goods, high-altitude operations.

It is widely used in construction site, building maintenance, factory daily aerial work maintenance and

various kinds of aerial work.

Scissor lift platform 500kg 11m movable hydraulic aerial elevated work platform

About Haizhili

Haizhili Machinery Co., Ltd. was founded in 1997. Haizhili is a high tech enterprise of research and

development, manufacture, sales and after-sales service of material handle equipments. With 2

production bases, covers an area of 20000 square meters, Haizhili has more than 500 experienced

technicians. We can provide our customers efficient, safe, comprehensive solution for aerial work,

cargo lifting, warehousing & logistics transportation.

Haizhili has hundreds of stores, transit warehouses and after-sales service points in China. Haizhili

also has thousands of distributors. No matter where you are, you can get our professional after-sales

service in time in China. Now Haizhili is expanding our business to the whole world. With perfect

pre-sale service, in-sales service, after-sales service, haizhili has earned good reputation and trust

from clients home and abroad.

Haizhili has always followed a policy of "Quality first, Technology leading, Cooperation and

Win-win ”. Haizhili has been developing itself by researching on new technology and new products,

offering superior products and service for customers. If you are looking for smooth business, profit

and success, we are the right supplier. With good quality and professional service, we have fully

confidence that Haizhili will be your best partner. We sincerely hope to cooperate with you for

win-win situation.
